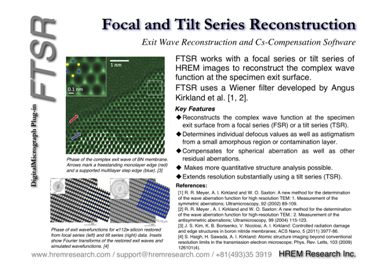

The Focal and Tilt Series Reconstruction (FTSR) method works with a focal series of HREM images to reconstruct a wave function. This method also works with a tilt series in order to improve resolution, theoretically doubleing the resolution of a normal illimination focal series. Using the FTSR you can obtain the wave function at the specimen exit surface that is not affected by spherical aberration. Therefore, the FTSR is a software Cs-corrector.
References and Technical Notes (*Basic Readings)
- * A. I. Kirkland and S. J. Haigh: Exit Wavefunction Reconstruction, JEOL News 44 (2009) 6-11.
- * K. Ishizuka and E. Okunishi: Quantitative Electron Microscopy Using Digital Data Processing, JEOL News 43 (2008) 17-22.
- *R. R. Meyer, A. I. Kirkland and W. O. Saxton: A new method for the determination of the wave aberration function for high resolution TEM: 1. Measurement of the symmetric aberrations; Ultramicroscopy, 92 (2002) 89-109.
- *R. R. Meyer , A. I. Kirkland and W. O. Saxton: A new method for the determination of the wave aberration function for high-resolution TEM.: 2. Measurement of the antisymmetric aberrations; Ultramicroscopy, 99 (2004) 115-123.
- K. Ishizuka: Tilt Series Reconstruction and Parallax Problem: M&M 2013 Abstract Poster
Examples (Sample Data)
- Sampling Interval
- MTF and NPS
- Focal Series Data: NbWO
- Focal Series Data: NdTiO
- Tilt Series Data: tiltf6 for v2.0
Download
You have to purchase a license (hardware key) to run this program.
Please send your price enquiry to support@hremresearch.com.
- FTSR (FSR and TSR) with Aberration Corrector v2.5
for GMS 3.6 (64bit)
for GMS 3.5 (64bit)
for GMS 3.4 (64bit)
for GMS 3.3 (64bit)
for GMS 3.2 (64bit) (applicable from GMS 3.0)
for GMS 2.3 32bit GMS 2.3 64bit
for GMS 2.1 32bit GMS 2.1 64bit (applicable from GMS 2.0)
for GMS 1.x (32bit)
Required plug-ins.
User Key Driver
Previous versions
- FTSR (FSR and TSR) with Aberration Corrector v2.4
for GMS 3.2 (64bit) (applicable from GMS 3.0)
for GMS 2.3 32bit GMS 2.3 64bit
for GMS 2.1 32bit GMS 2.1 64bit (applicable from GMS 2.0)
for GMS 1.x (32bit)
