HREM Filters Pro/Lite

HREM-Filters are sophisticated Wiener and Difference filters that extract a periodic feature from the noisy image. Since our filters can use locally-estimated two-dimensional background, they work even for non-ideal crystals, such as a nano-crystal or cylindrical crystal (as shown in the Flier). Furthermore, the iterative filters based on the random noise model for the background effectively reduce the shot noise (random noise/white noise) keeping non-periodic features. This is especially effective for a low-dose (S)TEM image.

Another feature of HREM-Filters is up-sampling filter. The data acquisition is often performed at a high magnification to obtain good looking images. Using upsampling, the data acquisition can be done at the optimum magnification, and smoothed images can be displayed by upsampling the acquired images. Using this technique a wider area can be observed at once in a single image. Using the Realtime module (optional), the upsampling will drastically change the data acquisition strategy.

HREM-Filters Lite can be downloaded free of charge from the link below.

Realtime module (Optional)
This module performs up-sampling noise filter in live, and reveals the sample structure even from a single frame at extremely low dose. Therefore, this module will accelerate the low-dose experiment in (S)TEM. For example, even from a single image obtained using Gatan K2/K3 camera with a counting mode at a dose rate as low as 0.25 el/pix/frame, you can observed the sample structure without accumulating the frames.

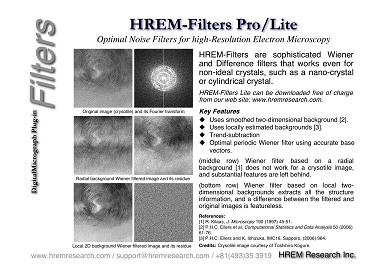

Flier/Specifications Manual
References and Technical Notes (* Basic Readings) Examples (Sample Data)
Download Previous versions

Please Subscribe to the HREM News to get latest information on this plugin.

Note: If you have already subscribed to the HRENM News, please don't subscribe again.

Please send your questions and inquiries to
