IPU Menu
IPU Menu
If a front image is a 3D image and choose this menu with shift key down,you will get the 3D IPU menu.
FFT / 3D FFT
Same as DigitalMicrograph
Inverse FFT / 3D Inverse FFT
Same as DigitalMicrograph
Reduced FFT / 3D Reduced FFT
Same as DigitalMicrograph
Live
Same as DigitalMicrograph
Live Menu
Reduced FFT
Auto Correlation / 3D Auto Correlation
Same as DigitalMicrograph
Cross Correlation / 3D Cross Correlation
Extended cross-correlation function. By default this behaves same as DigitalMicrograph. However, if you choose this command with ALT key down, you will get a dialog shown below where you can select a cross-correlation mode and a mask size.
Cross Correlation Dialog
Mode | Cross correlation mode |
Mask size | Mask radius given in pixels in Fourier space, or 0 to 0.5 in terms of Nyquist frequency. |
Convolution / 3D Convolution
Calculates a convoluted image of selected two images.
Statistics / 3D Statistics
Same as DigitalMicrograph
Statistics Menu
Math / 3D Math
Same as DigitalMicrograph
Math Menu
Complex To Real / 3D Complex To Real
Creates a real image of the specified type from a complex image.
Complex To Real Menu
Extract Current Slice
Extracts one currently displayed image from a front image.
Extract All Slice
Extracts all component images from a front image.
Create Stacked Image
Creates a stacked image of "Number of Slices" from the top most image in the image list of the window menu.
Create Stacked Image Dialog
Choose Images From Stack
Extracts all the image , or selected images from a front image.

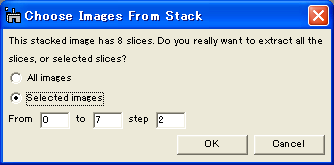

Choose Images From Stack Dialog
Display Tags
Displays Image Tags of the front image.
